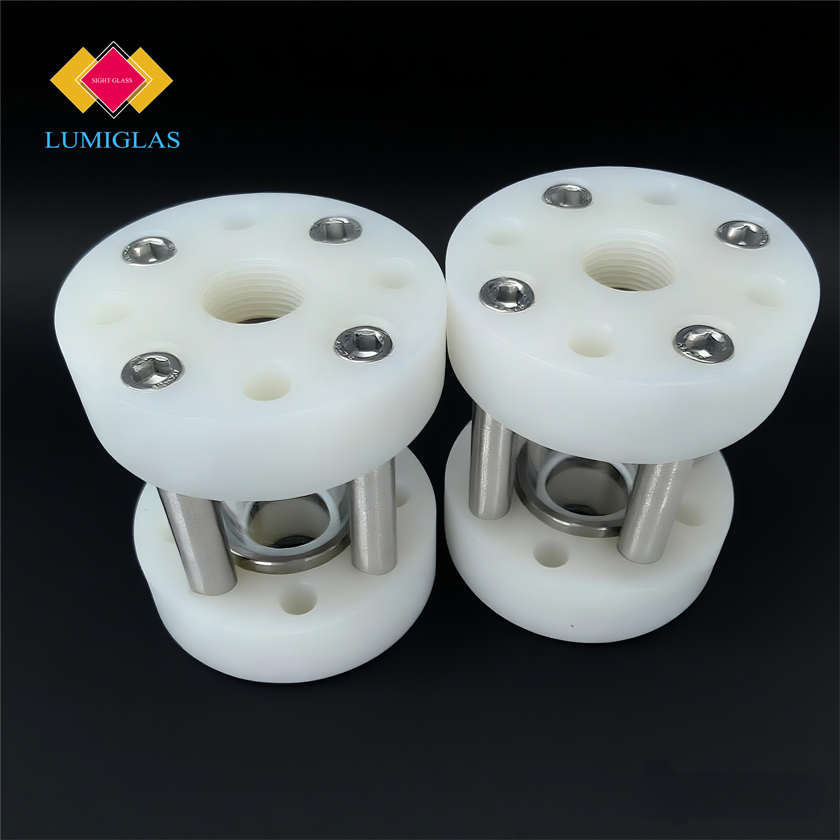

PVDF Pipeline Sight Glass — Tubular PVDF Sight Flow Indicator - Image 2

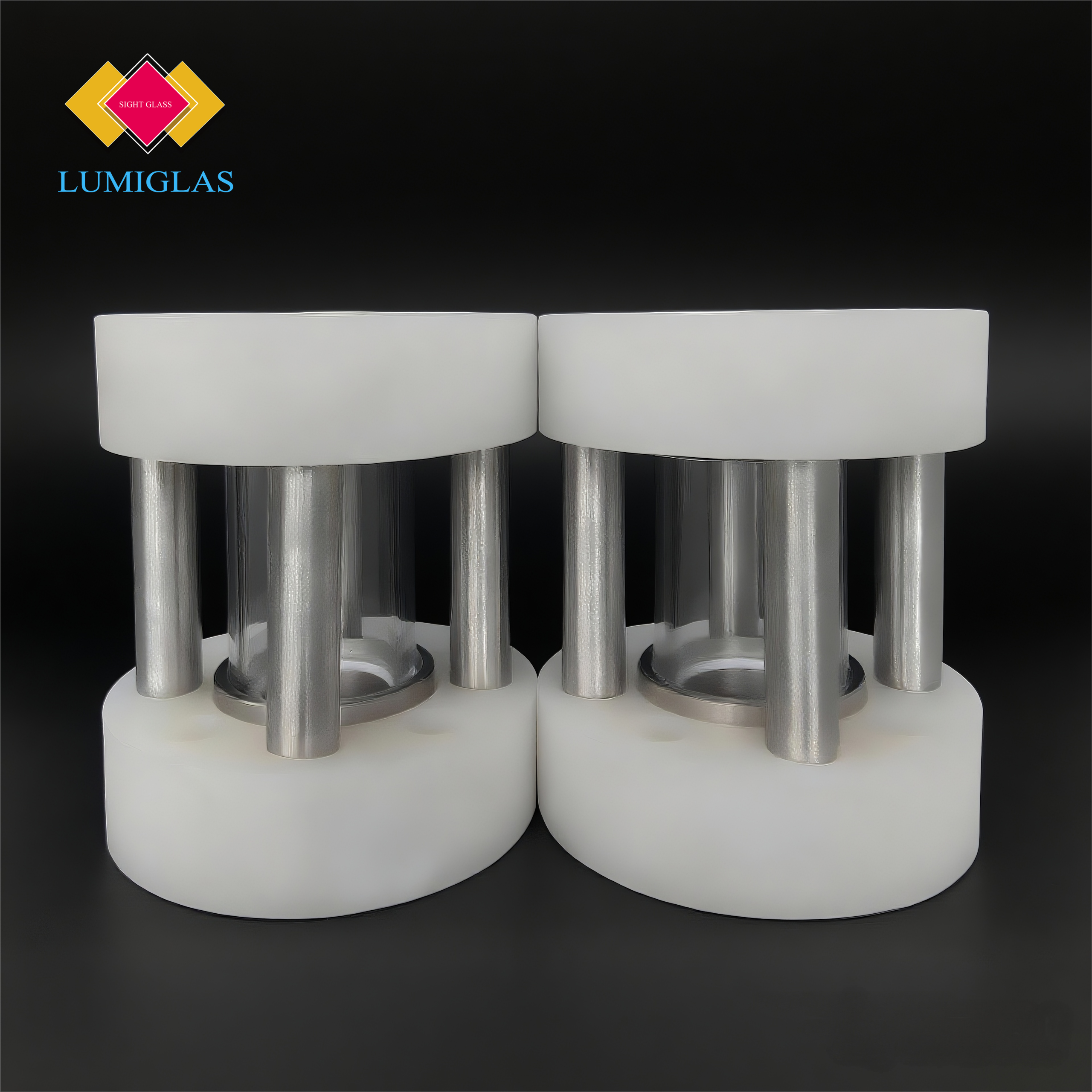

PVDF Pipeline Sight Glass — Tubular PVDF Sight Flow Indicator - Image 3

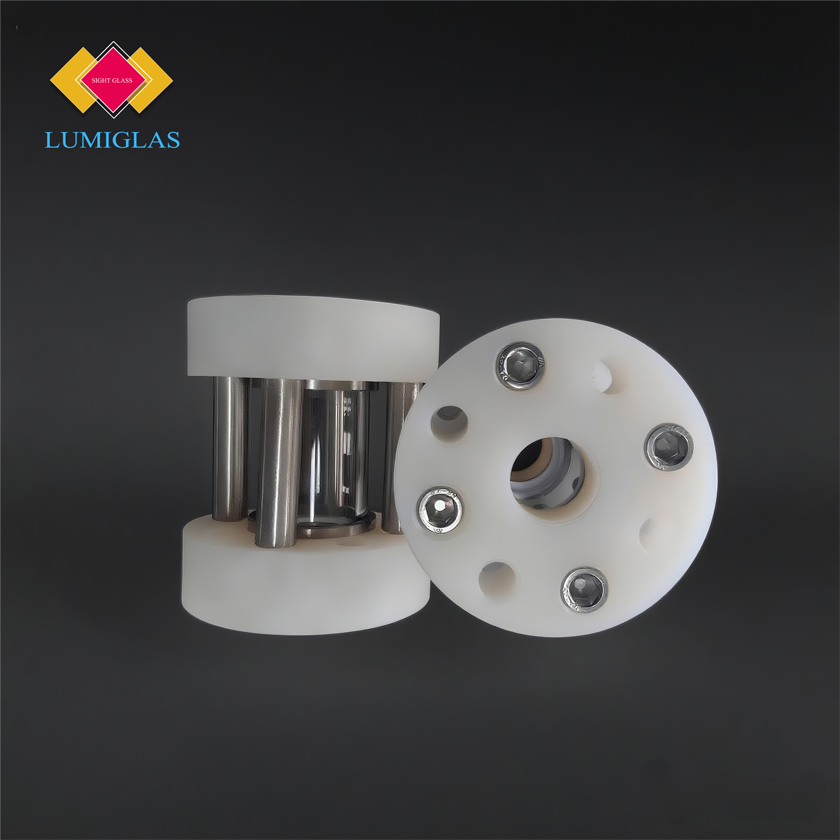

PVDF Pipeline Sight Glass — Tubular PVDF Sight Flow Indicator - Image 4

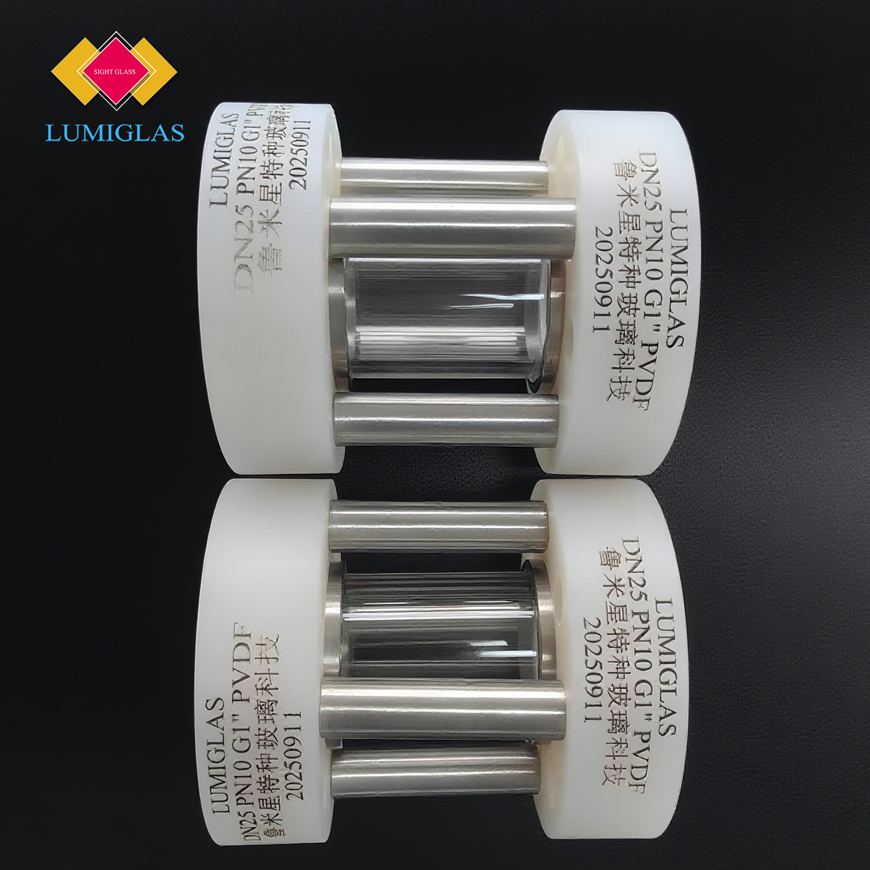

PVDF Pipeline Sight Glass — Tubular PVDF Sight Flow Indicator - Image 5

PVDF Pipeline Sight Glass — Tubular PVDF Sight Flow Indicator

PVDF pipeline sight glass with PVDF housing and borosilicate tube — chemical-resistant tubular sight flow indicator for acidic/alkaline lines.

Category:

Description

PVDF pipeline sight glass combines corrosion-resistant PVDF housings with high-clarity borosilicate (or optional toughened) viewing tubes to deliver reliable, 360° visual monitoring in aggressive chemical and water treatment environments. Available in inline, three-piece and full-view tubular variants.

Product highlights

  • Full PVDF housing option — all wetted parts PVDF for maximum corrosion resistance.
  • Borosilicate glass tube (standard) — superior chemical & temperature resistance; optional toughened or quartz tubes for special needs.
  • 360° visibility tubular design — ideal for flow observation, level detection and visual verification in continuous processes.
  • Pressure & temperature — typical PN6–PN16 (model dependent); continuous temp range −20°C to +100~120°C (grade & tube dependent) .
  • Sanitary & CIP compatible — hygienic seals and smooth interiors available for food/pharma lines.
  • Optional extras: lighting/LED backlight, flow indicators (rotor/ball), inline valves, level sensors, and sight glass with integrated spotlight for hazardous areas (Ex variants)

Why choose PVDF sight glass?

For pipelines carrying acids, alkalis or aggressive organics where stainless steel may corrode or contaminate the media, PVDF housings provide a long-life, low-maintenance solution. Tubular PVDF sight glasses minimize dead zones, allow easy inspection and integrate with standard piping via flanges or sanitary clamps.

Typical technical specifications

Material — Key Properties

Appearance Translucent or white powder/granules
Density 1.77 – 1.80 g/cm³
Melting point 172 ℃
Long-term operating temperature range −60 ℃ to +150 ℃
Radiation resistance Withstands extreme UV exposure
Chemical properties (stability) Resistant to chemical corrosion, hydrolysis and UV; virtually unreactive with most media
Mechanical properties High rigidity, excellent creep resistance, good sliding and wear resistance. (Note: releases fluorine-containing fumes upon combustion)
Special features — Piezoelectricity After polarization, piezoelectric coefficient can reach ~6–7 pC/N (≈10× other polymers)
Pyroelectricity Suitable for sensors and advanced thermal imaging equipment
Dielectric properties Excellent electrical insulation; oxygen index ≈ 46% (non-flammable)
Applications Mainly used in ultrapure water systems, semiconductor reagent transfer, high-temperature cable sheathing, and other high-purity / high-temperature applications.

Notes: Values are typical. For exact specs, please contact us with your operating conditions.

Available product variants

  1. Inline tubular PVDF sight glass — low cost, easy to install.
  2. Three-piece PVDF sight flow indicator — replaceable tube cartridge for quick maintenance.
  3. Full-view PVDF sight glass — maximized viewing area for process monitoring.
  4. Sanitary PVDF sight glass — tri-clamp connections, smooth internals for CIP/SIP.
  5. Lighting / Spotlight integrated — for low-light applications; Ex-rated options on request

Typical applications

  • Chemical processing (acid/alkali lines), electroplating, pickling/acid tanks.
  • Water & wastewater treatment (acid dosing, clarifiers).
  • Pharmaceutical & food process lines (use sanitary PVDF & FDA materials).
  • Semiconductor wet processing and high-purity chemical lines.
  • OEM machinery and replacement parts inventory for corrosive environments.
