Sight Glass with Scraper
Sight glass with scraper — stainless-steel scraper mirror for DIN 28120 sight glasses (DN50–DN400). Download datasheet, view specs and order custom sizes.
Description

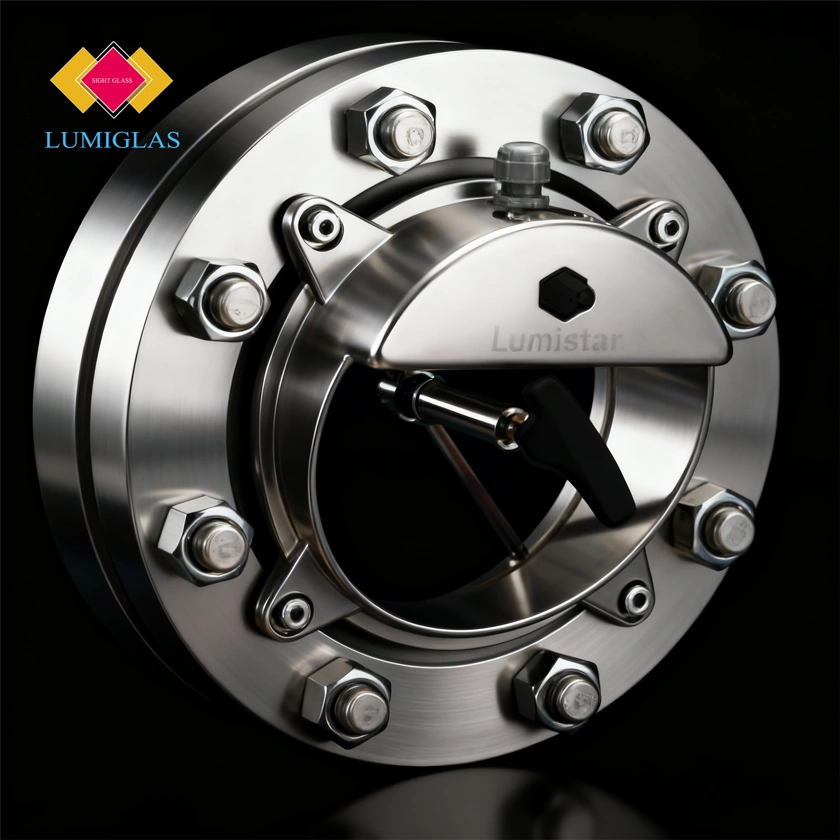

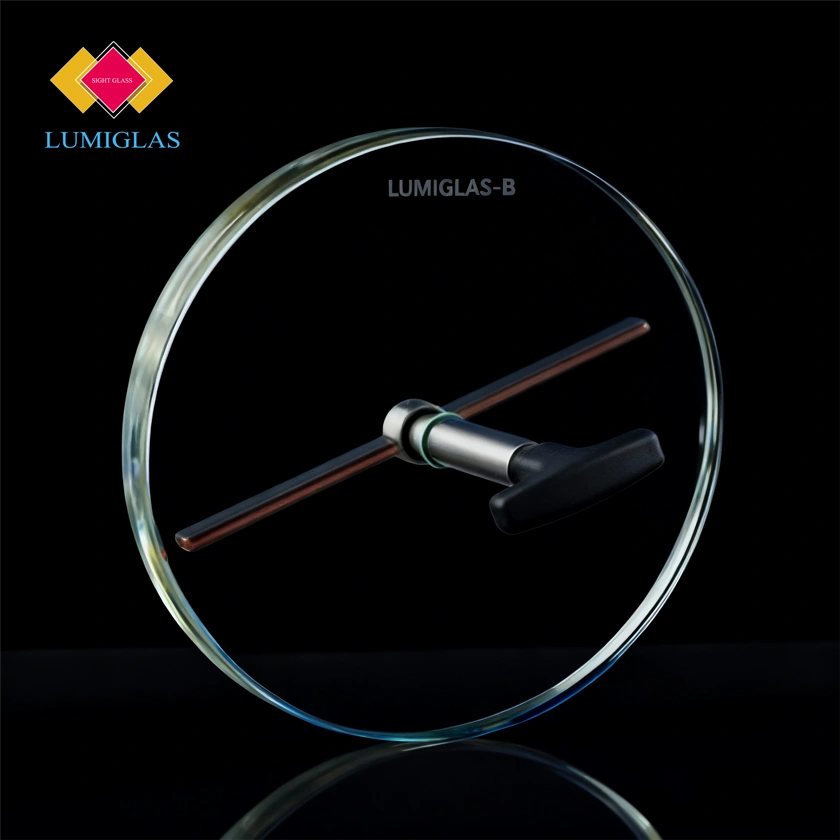

A sight glass with scraper (scraper mirror) is a fitted viewing lens with an integrated wiping mechanism designed to keep the visible surface clean in continuous-process installations. Our scraper assemblies fit circular mirrors per DIN 28120 (DN50–DN400) and work with a range of lens materials, including sodium-calcium glass and borosilicate. Download the full technical datasheet below for parts, materials, and installation details.
Core benefits
- Keeps viewing surface clean from deposits, condensate, and product build-up — reduces downtime and manual cleaning.
- Robust stainless-steel construction for all wetted parts; bearings use PTFE/PEEK where required.
- Compatible with standard DIN 28120 sight glass fittings and threaded screw-type fittings (e.g. DIN 11851).
- Custom scraper sizes up to Ø460 mm; compatible with Lumistar spotlights and other accessories.
Quick technical summary
| Parameter | Typical value / options |
|---|---|
| Compatible nominal widths | DN50 – DN400 (DIN 28120 / DIN 11851 style) |
| Lens material | Sodium calcium glass or borosilicate glass |
| Pressure resistance | 2 – 6 bar (depends on lens spec and flange) |
| Temperature | Up to 220 °C (lens-dependent) |
| Scraper material | Silicone resin / PTFE / EPDM (selection per application) |
| Metal parts in contact with scraper | Stainless steel (1.4301 / 1.4401 / 1.4404 / 1.4571) |
| Seals | Viton O-rings; asbestos-free gasket BAS 400 |
| Max scraper diameter | Up to 460 mm (custom) |
Download datasheet (PDF)
Request quote / CAD
Installation & operation notes
- Match scraper diameter to the visible lens diameter; tolerance is critical for correct wiping pressure.
- Lubrication-free PTFE bearings are recommended for sanitary/food environments.
- When exposed to abrasive media, choose a PTFE scraper or silicone with protective backing to prolong life.
- Inspect O-rings and gasket during maintenance intervals; replace Viton seals if exposed to strong solvents at temperature.
- Designed to combine with Lumistar spotlights and spray equipment for illuminated, clean sight ports.
Applications
- Food & beverage process tanks and pasteurizers
- Chemical reactors and pipelines with fouling fluids
- Pharmaceutical reactors where visual inspection must be continuous
- Any sight glass installation prone to film, condensate or deposit build-up
Materials & spare parts (common)
- Handle & lever: stainless steel 1.4305; ratchet clutch: steel; spacer: brass or PEEK
- Scraper elements: PTFE / EPDM / silicone (dependent on chemical compatibility)
- Seals: Viton O-ring (standard), optional PTFE gasket
- Bearings: PTFE
FAQ
- Q: Which sight glasses fit the scraper?
- A: It fits circular sight glasses built to DIN 28120 and similar threaded connections (DN50–DN400). For specific adapter requirements, request CAD.
- Q: Can I get an electrical scraper or motorized variant?
- A: This scraper is manual ratchet style; motorized variants may be offered — contact us to discuss customization.
