USL 03-LED sight glass luminaire
USL 03-LED sight glass luminaire — compact stainless steel housing, IP65, 24V LED, 180lm, 36° beam. Suitable for circle sight glass and fits DIN 28120/28121 & DIN 11851 style fittings.
Description

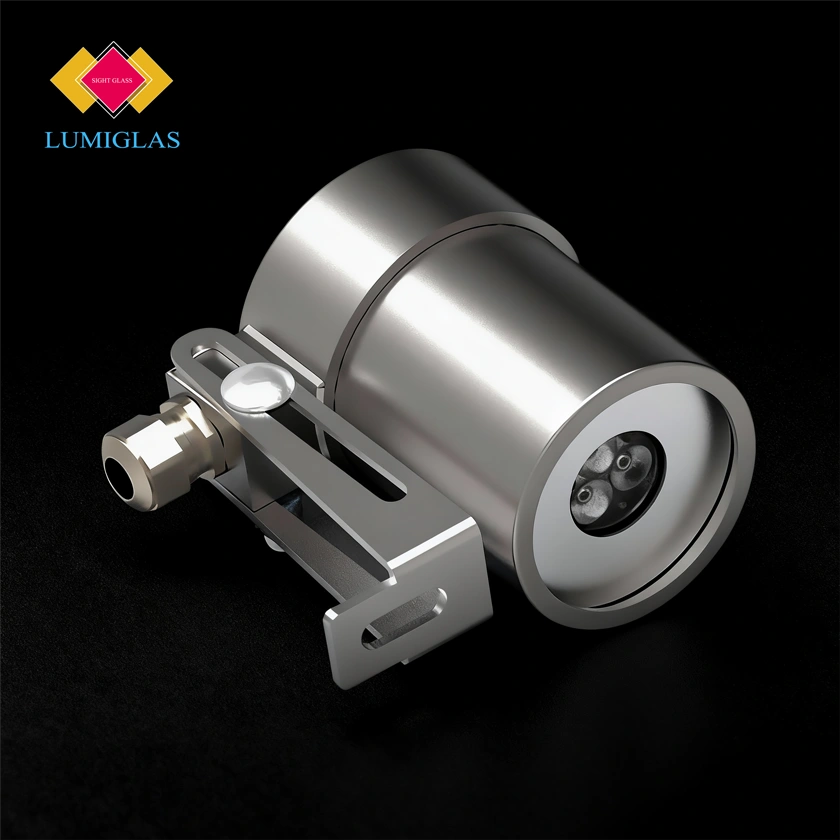

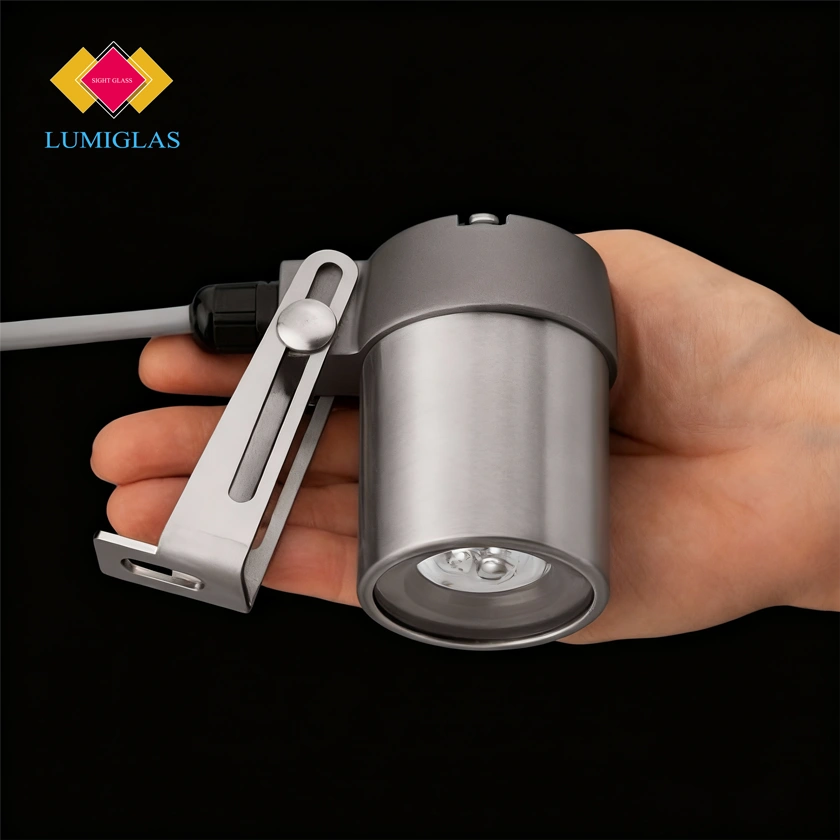

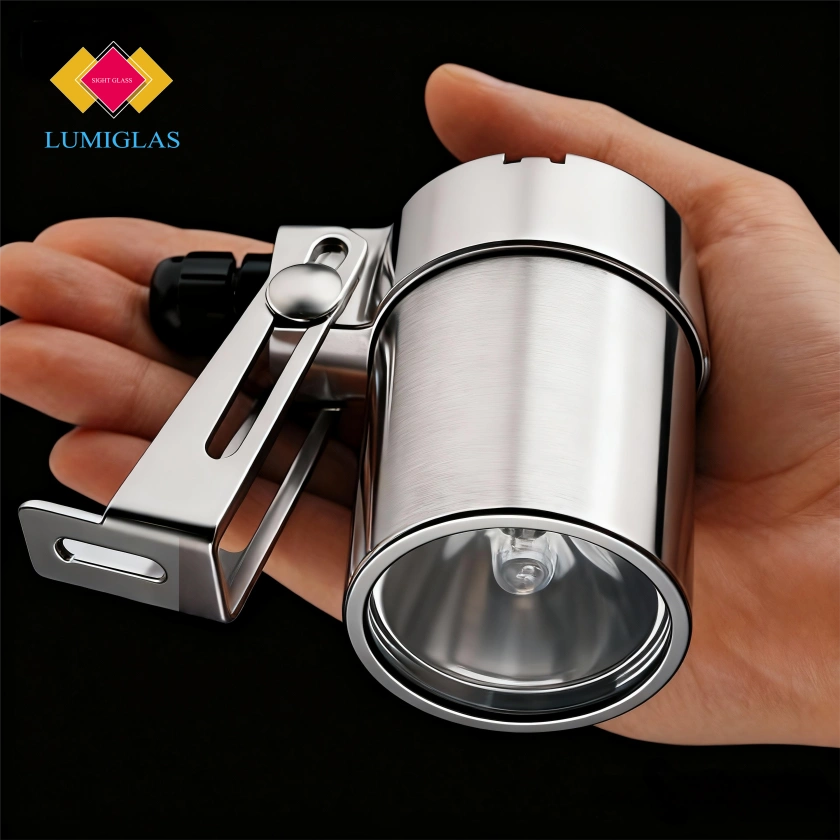

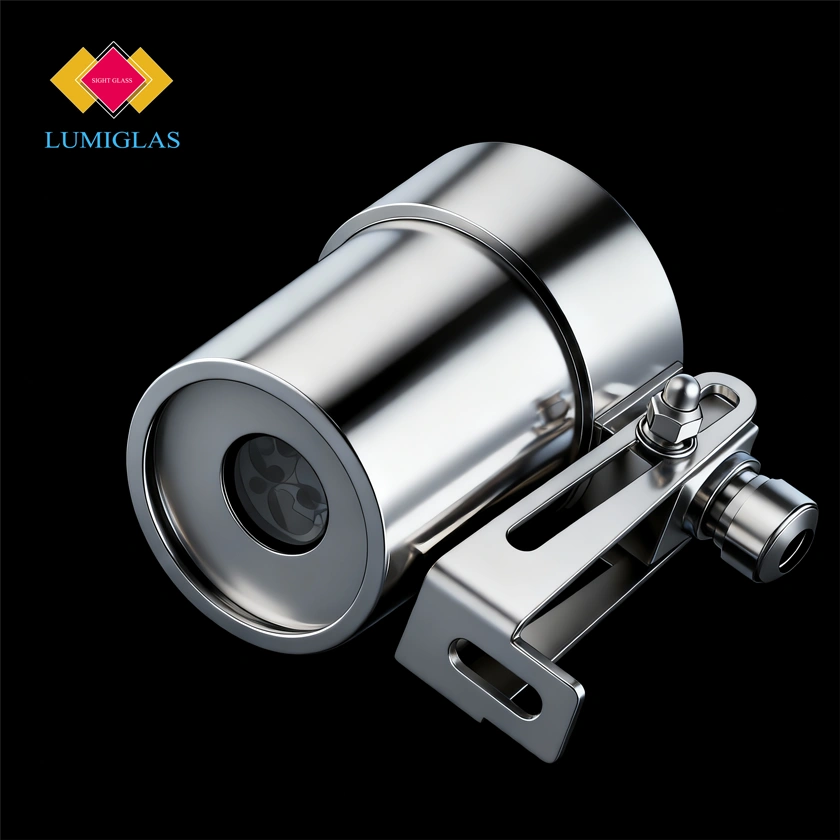

The USL 03-LED sight glass luminaire is a compact, stainless-steel LED light engineered for mounting on sight glass fittings and visual flow indicators. It provides glare-free illumination for tanks, hoppers, silos, and closed vessels and fits many standard sight glass fittings (DIN 28120 / DIN 28121 and DIN 11851 style).
Key benefits
- Ultra-compact stainless steel housing — suitable for tight sight glass ports.
- IP65 rated — dust and water-jet protection for harsh plant environments.
- High CRI / daylight color options (standard 5700 K available) and narrow/wide beam options (18° / 30°).
- Simple mounting: bracket for flange attachment or grooved nut fastening for screw-type fittings.
- Factory-supplied 5 m cable tail; other lengths on request.
USL 03-LED sight glass luminaire — Typical specifications
| Product | USL 03-LED sight glass luminaire (stainless steel) |
|---|---|
| SIZE | Total length: 79 mm Diameter: 53 mm |
| Beam angle | 18° or 30° options |
| Protection class | Dust- and waterjet-proof, IP 65 according to EN 60 529 / DIN VDE 0470, Part 1 |
| Operating ambient | max. 40°C |
| Materials | Housing: stainless steel 1.4301; head: 1.4552; bracket/adapter: 1.4301. |
| Power / connectors | Factory-fitted 5 m cable (3×0.75 mm²). Transformers on request. |
| Weight | ≈ 0.8 kg |
| Mounting compatibility | a)Circular sight glass fitting similar to DIN 28120: from DN 25 b)Circular sight glass fitting similar to DIN 28121: from DN 40 c)Visual flow indicators: from DN 50 d)Screw-type sight glass fittings similar to DIN 11851: from DN 50 |
| Replacement parts | LED lamp GU4, bracket, O-rings, lid seal, transformer — see datasheet. |
| Operating voltage: | 12 V/24 V AC/DC Colour temperature: 4000 K Luminous flux: 180 lm |
Change / replace the LED illuminant (quick guide)
Follow these safe steps when replacing the LED lamp:
- Switch off the luminaire and disconnect the power supply. (Safety first.)
- Loosen the two screws in the head of the luminaire and carefully open the housing.
- Replace the LED illuminant — always use the same lamp type and wattage (e.g., GU4 12 V/2 W or the specified LED for your model).
- Check O-ring seals and lid seal; replace if worn (spare part numbers in datasheet). Reassemble and test.
Installation & mounting
The USL 03-LED is usually mounted using the supplied hinged bracket (included) to the mating flange of a circular sight glass fitting, or attached to the grooved nut on screw-type sight glass fittings. The required M6 screw is supplied. For flow indicators and special flanges, use the accessory mounting adapters. See installation instructions.
Applications
- Illumination for sight & light ports on tanks, hoppers, silos, agitators, and reactors
- Visual flow indicators and pipeline sight ports
- Food processing, where stainless housing and an IP rating are required
- Process lines where compact, glare-free lighting is needed
Request quote
Download datasheet
FAQ
- Q: What voltage options exist for USL 03-LED?
- A: Typical LED variants are 24 V DC/AC (5 W) with transformers or 12 V GU4 variants available per model — check your part number.
- Q: Is the luminaire suitable for pressurized vessels?
- A: The luminaire is independent of container pressure/vacuum but must not be used as a substitute for the full sight glass flange or counter-flange. Follow flange manufacturer guidance and certification rules.
- Q: Can I use the same luminaire on different sight glass standards?
- A: Yes — with the correct mounting kit or bracket, the USL 03-LED fits many circular sight glass fittings similar to DIN 28120/DIN 28121 and screw-type fittings similar to DIN 11851. Confirm DN and mounting accessory.
