Sintering Observation Window Glass

Sintering Observation Window Glass

The Lumistar Sintering Observation Window Glass is a flush, fused-to-metal borosilicate sight window engineered for flat-face flanges and weldneck installations (e.g. DIN 28117). It delivers maximum viewing area, high mechanical strength and a hygienic metal border for easy CIP/sterile cleaning. Available in multiple ring alloys with material certificates and batch test reports on request.

Category:

Description

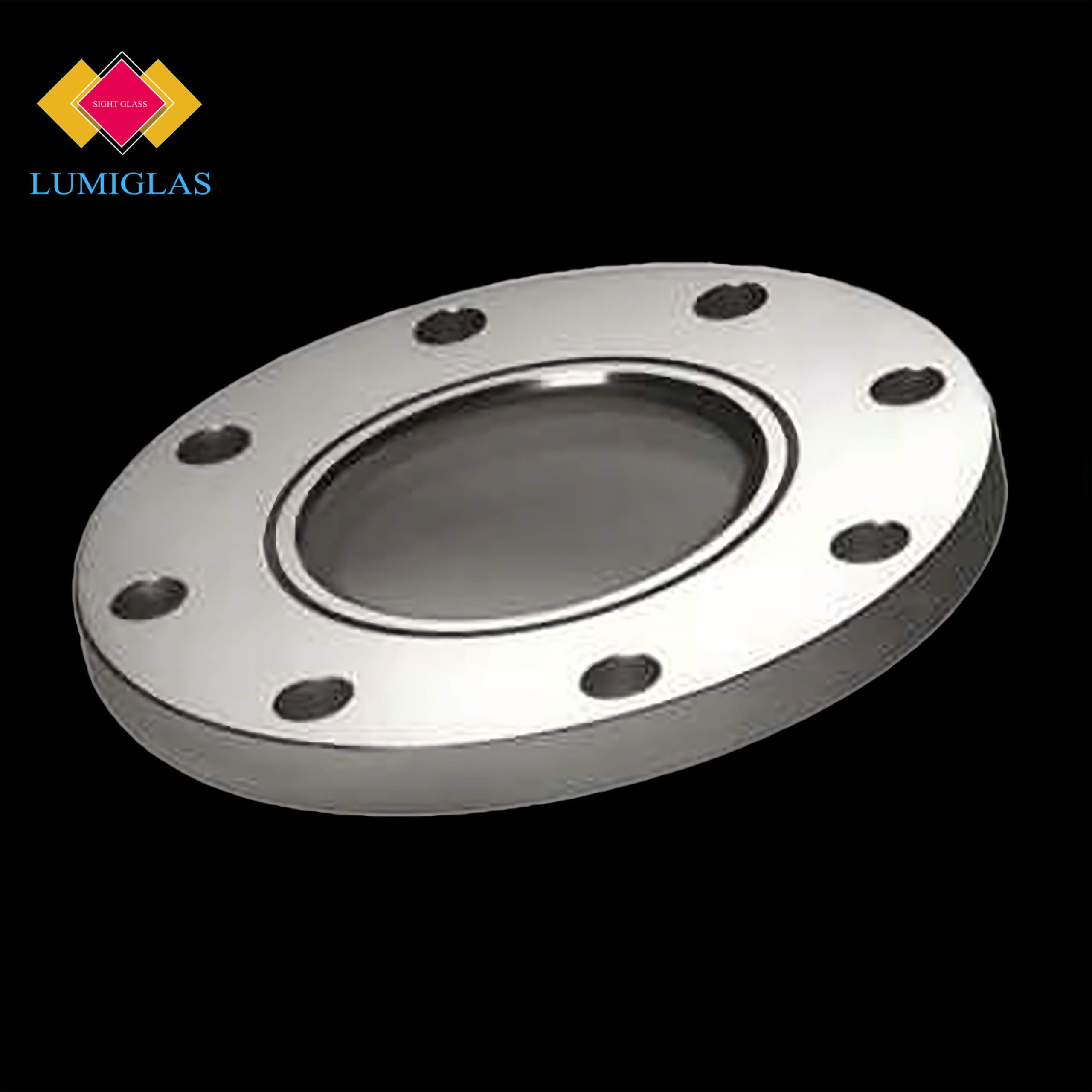

The Lumistar sintering observation window glass is a flush-glass, fused-to-metal sighting assembly designed for welded or flanged installations where maximum viewing area and hygienic cleaning are required. The assembly features borosilicate glass sintered to a metal border which produces a secure, flat-faced viewing window with high mechanical strength and easy-to-clean outer surfaces — ideal for process vessels, sight ports and pressure-applications where a clear, hygienic view is essential.

Why choose a Sintering Observation Window Glass?

The Lumistar sintered welded lamp viewing glass (NA-Connect) delivers a compact, hygienic and highly reliable sighting solution for modern process lines. Its borosilicate glass is sintered and welded into a stainless-steel holding ring to create a leak-tight, low-profile assembly that is easy to clean, simple to install and engineered for sterile/CIP environments. Designed for hygienic fittings, it minimises dead-space, provides predictable failure behaviour and comes with material and test documentation to support regulated food, beverage and pharmaceutical projects.

Product at a glance

  • Standard: Sintering Observation Window Glass
  • Window: Sintered borosilicate glass (porous structure), custom porosity on request.
  • Body: Stainless steel 304 / 316 housings; special alloys on request.
  • Mounting: Flanged, weld-on or cartridge styles.

Typical specifications



Sintered Sight Glass — Specifications

Type Sintering Observation Window Glass
Window material Sintered borosilicate glass
Body material Stainless steel 304 / 316
Nominal Temperature 280°C
Pressure
  • -1-16 bar
  • Higher pressures possible
Material certificates Certificate of conformity to EN 10204
Technical data of Lumistar sightglasses:
  • Test base: DGRL97/23/EG,AD 2000 standards.
  • Materials to Vd specifications and the respective DIN/EN standards.
  • Sight glass fused to metal conforming to DIN 7079
  • Borosilicate glass to DIN 7080
Ring materials

  • Duplex Stainless Steel (1.4462)
  • Hastelloy C-22 (2.4602)
  • Hastelloy C-4 (2.4610)
  • Alloy59（2.4605）
  • Other materials available

Need a custom porosity or diameter? Contact us for a quote.

Features & benefits

  • High security & predictable behaviour — sintered glass-to-metal joint reduces risk of failure.

  • Flush glass / metal border — maximum viewing area and very easy cleaning for sterile applications.

  • Compact, robust construction — suitable for pressure applications up to the specified rating.

  • CIP compatible — smooth surfaces and minimal dead space support CIP and sterile cleaning.

Applications

  • For base flanges to DIN 28117 or similar flat-face flanges.

  • For weldnecks with flat face (no recess).

  • Typical uses: sight ports on vessels, tanks and pipelines in food, beverage, chemical, cosmetic and pharmaceutical industries.
  • Important: Only for use with parallel flat-face flanges without seal recess. Maximum tightening torque 20 Nm. We recommend the use of Belleville spring washers (2 pcs. per connection hole) to ensure even load distribution.

Downloads

Sintering Observation Window Glass — Datasheet (PDF):Sintering Observation Window Glass
